Nano Plastic Dryers
Designed to mount on the hoppers (15 and 25 CMH models available)
Our Airgineers Can Help You Select The Right Product!
Contact Us
Designed to mount on the hoppers (15 and 25 CMH models available)
Our Airgineers Can Help You Select The Right Product!
Contact Us
High Precision Output
Zero Footprint
Waterless Operation
Precise Dew Point Control

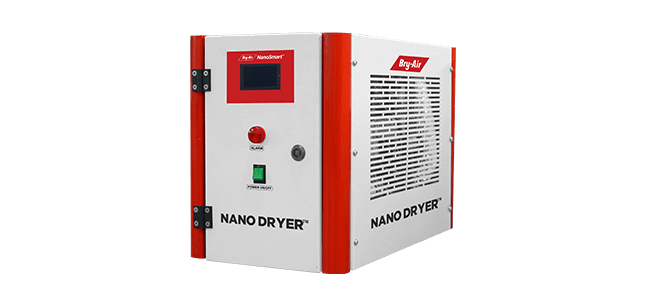

Nano Plastic Dryers – Desiccant Dryer/ Small Plastic Dryer works at (-) 40 °C dew point for quality and small quantity processors of special materials with low throughputs, providing high precision output handling capacity of 6-12 kg/hr. This compact plastic dryer machine is ideal for precision processing applications requiring consistent moisture control.
Nano Dryer adds the value of a Dehumidifier Dryer for the typical drying needs of micro/miniature component processing units. It enhances the mechanical properties of the final plastic product made from speciality plastic, engineering polymers such as Nylon, ABS, HIPS, PC, SAN, PMMA, POM, PBT, etc., making it an efficient polymer dryer for engineering-grade materials. Nano Dryers are mostly used by processors that use table-mounted injection moulding, vertical moulding, hand-operated injection moulding, and small-capacity injection moulding machines. Nano Dryer also helps in reducing the back pressure of injection moulding, delivering superior performance as a plastics dryer for small-capacity processing operations.

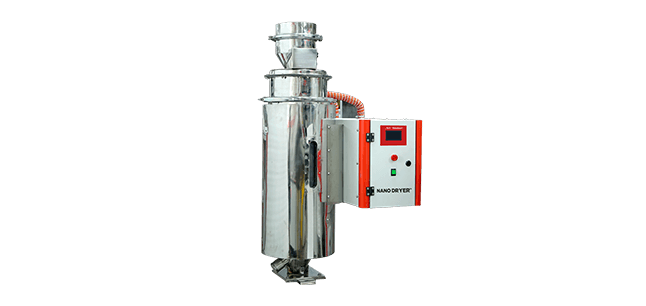

Bry-Air Nano Dryers are compact, waterless desiccant dryers for plastics designed for low-throughput applications requiring precise moisture control. Operating at up to (-30 to -35°C) dew point, they ensure consistent drying of hygroscopic engineering resins without the need for cooling water. It is designed to rucksack on a hopper and thus eliminates the requirement of floor space. The Nano Dryer is compact in size and does not require a cooling water connection.
The Nano Dryer combines the benefits of Resin dryers, Dehumidifier Dryers, and compact plastics dryer systems in a single space-saving solution.
All Nano Dryers come standard with:
Digital dew point meter
|
Model
|
Process
Air Inflow (CMH) |
Hose Connection (in)
|
Ooutlet Temp. Range (°C)
|
Process Blower
(KW) |
React
Blower (KW) |
Bed Drive Motor (KW)
|
Process Heater (KW)
|
React Heater
(KW) |
Dimensions in mm
|
Process Out Dew Point (°C)
|
Unit
Weight (Kg) |
||
|
W
|
D
|
H
|
|||||||||||
|
NANO-15
|
15
|
1 ½
|
80-180
|
0.07
|
0.07
|
0.006
|
0.7
|
0.4
|
320
|
584
|
410
|
-20-40
|
35
|
|
NANO-25
|
25
|
1 ½
|
80-180
|
0.07
|
0.07
|
0.006
|
1.1
|
0.75
|
320
|
584
|
410
|
-20-40
|
35
|
All data subject to change without notice
The Nano Dryer offers high precision output and efficiency with its compact size and waterless operation. It is suitable for small throughputs and helps improve the quality of plastic products made from special materials. The system functions as an advanced plastic dryer machine, polymer dryer, and Dehumidifier Dryer for moisture-sensitive plastics.
Standard variants of Nano Dryers are available in 15 and 25 CMH models.
The Nano Dryer is ideal for automotive T1/T2/T3 plastic processors, electrical switch manufacturers, medical plastics, miniature component producers, and various other industries like cosmetics, toys, and more.
The Nano Dryer is easy to operate, featuring isolated 24V DC relay driver output, digital inputs, RTD PT-100 inputs, and various interfaces for user convenience. It also has a clock calendar with battery backup.
The Nano Dryer comes with options like a digital dew point meter and is versatile for various applications and industries. Customization can be discussed based on specific needs.
